Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
IS9001
Model Number:
S-MVxxxxxxxxx

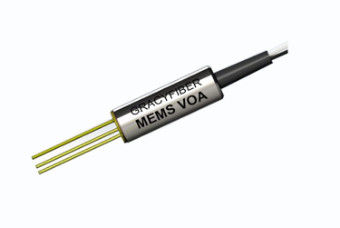

The Springtek MEMS VOA (Micro Electro-Mechanical Systems Variable Optical Attenuator) is a micro-optic component designed for next generation, dynamically configurable optical networks. It is based on the Photonic Integrated Circuit (PIC) and electrostatic MEMS technology. The reflective mirror MEMS technology enables the creation of products with high attenuation levels and can be configured as bright or dark devices. When combined with the advanced packaging and manufacturing capabilities, this results in a new category of MEMS components that are designed to exceed specifications for performance, compactness, manufacturability and reliability. Springtek provides a series of customized MEMS VOA products to meet different requirements on operating wavelength, attenuation type, drive voltage, fiber type, fiber length, input connector, and output connector.
Ordering information
| Company | - | Type | Center Wavelength | Type | Drive Voltage | Fiber Type | Fiber Length | Input Connector | Output Connector |
| S=Springtek | - | MV=MEMS VOA | O=O-band | B=Bright | 06=6V | B=250um bare fiber | 10=1.0m | 0=None | 0=None |
| C=C-band | D=Dark | 15=15V | L=0.9mm loose tube | 15=1.5m | 1=FC/UPC | 1=FC/UPC | |||
| L=L-band | 20=2.0m | 2=FC/APC | 2=FC/APC | ||||||
| F=Full-band | 25=2.5m | 3=SC/UPC | 3=SC/UPC | ||||||
| X=Customized | ... | 4=SC/APC | 4=SC/APC | ||||||
| 5=LC/UPC | 5=LC/UPC | ||||||||
| 6=LC/APC | 6=LC/APC |
Features
Application
Compliance
Specifcation
| Parameters | MEMS VOA | Unit | |
| Type | Bright | Dark | |
| OperatingWavelength | SM:1260~1620: MM:850/1310 | nm | |
| Attenuation Range | SM: ≥30@5V: MM: ≥230@3V | dB | |
| Insertion Loss | ≤0.7 | dB | |
| Response Time | ≤8 | ms | |
| Return Loss | SM≥50: MM≥30 | dB | |
| WDL | ≤0.25@0V | dB | |
| Optical Power | ≤500 | mW | |
| Driving Voltage | SM≤6.5; MM≤35 | V | |
| OperatingTemperature | 20~+85 | ℃ | |
| Storage Temperature | -40~+85 | ℃ | |
| Dimension | Φ5.4x19 | mm | |
