Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-CXXXXXXX-XX

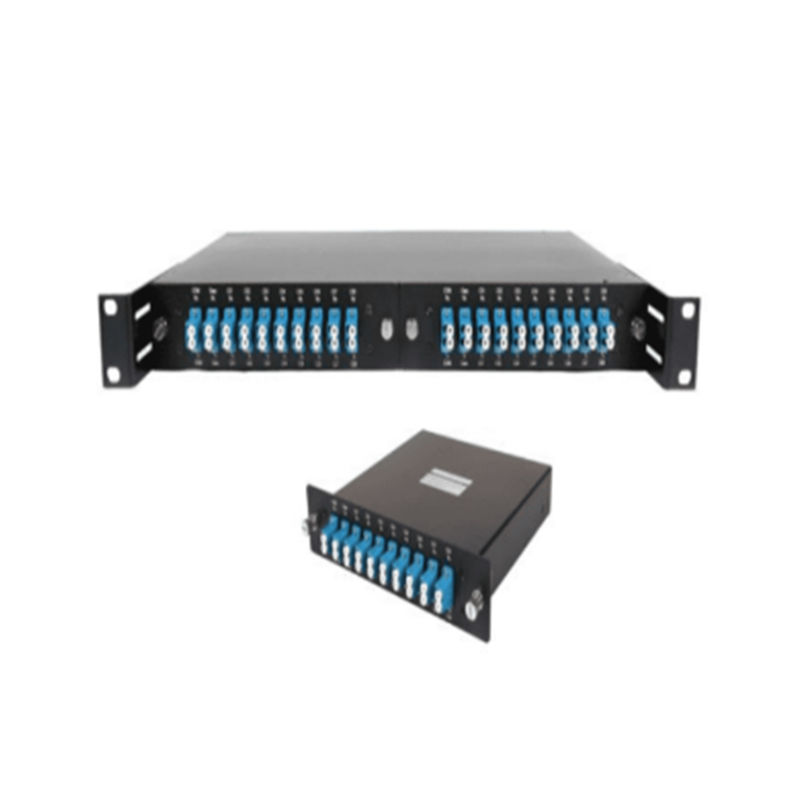

CWDM MUX/DEMUX Rack Mount
Ordering information
| CWDM MUX/DEMUX Rack Mount | |||||||||
| Springtek | - | CWDM | Channel No. | MUX/DEMUX Type | Initial CW | Package Type | - | Input Connector | Output Connector |
| x | - | x | XX | X | XX | XX | - | X | X |
| S | - | C | 04= 02CH | M=Mux | 270= 1270 | LGX=155x129 x29 | - | 0=No | 0=No |
| ………… | D= Demux | … | 2IN1=215x190x42 | 1=FC/UPC | 1=FC/UPC | ||||

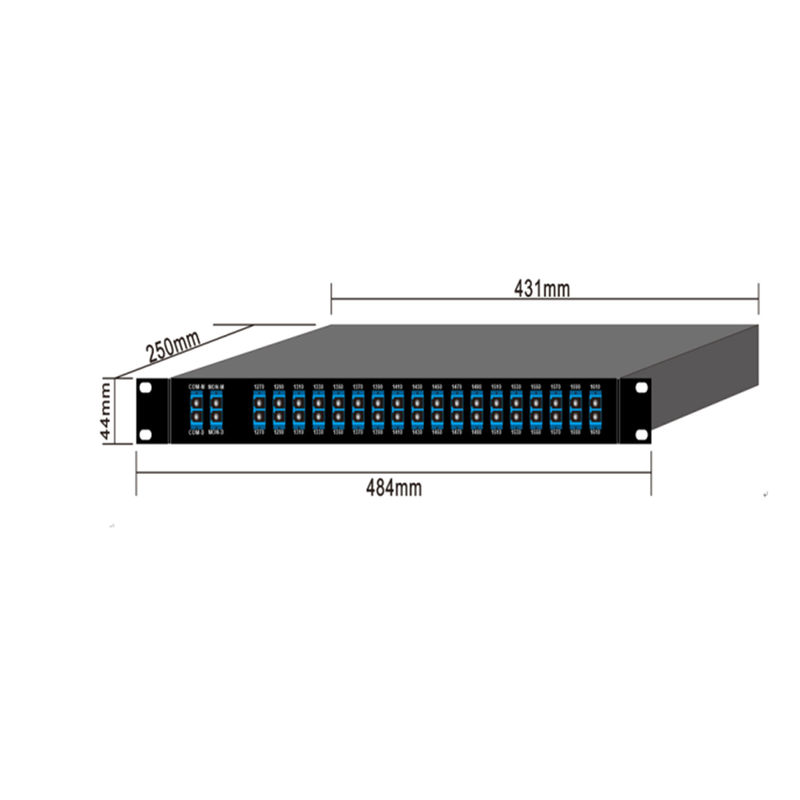

| 08= 08CH | M&D=Mux&Demux | 550=1550 | 191U=484x250x44 | 2=FC/APC | 2=FC/APC | ||||
| 551=1551 | X0= Customized | 3=SC/UPC | 3=SC/UPC | ||||||
| 4=SC/APC | 4=SC/APC | ||||||||
| 5=LC/UPC | 5=LC/UPC | ||||||||
| 6=LC/APC | 6=LC/APC | ||||||||
Features
Applications
Specifications
| Parameters | Unit | 4CH | 8CH | 12CH | 18CH | |
| Operating Wavelength | nm | 1260~1620 | ||||
| Channel Space | nm | 20 | ||||
| Center Wavelength | nm | ITU,ITU+1 | ||||
| Center Wavelength Accuracy | nm | ±0.8 | ||||
| Pass band @-0.5dB | nm | ±6.5 | ||||
| Port Insertion Loss | dB | ≤1.2 | ≤2.5 | ≤3.5 | ≤3.8 | |
| Link Loss | dB | ≤2.0 | ≤3.2 | ≤4.0 | ≤4.3 | |
| Isolation (dB) | Adjacent | dB | ≥30 | |||
| Non-adjacent | dB | ≥40 | ||||
| Ripple | dB | ≤0.5 | ||||
| Polarization Dependent Loss | dB | ≤0.2 | ||||
| Return Loss | dB | ≥40 | ||||
| Directivity | dB | ≥50 | ||||
| Power | mw | ≤300 | ||||
| Fiber Type | / | G657.A1(0.9mm Tube, 2.0mm Tube) | ||||
| Fiber Length | m | 0.5+/-0.05&Customized | ||||
| Connector | / | LC/UPC&Customized | ||||
| Operating Temperature | ℃ | -20~75 | ||||
| Storage Temperature | ℃ | -40~85 | ||||
| Housing | mm | 100*80*10,120*80*18,140*115*18 | ||||
