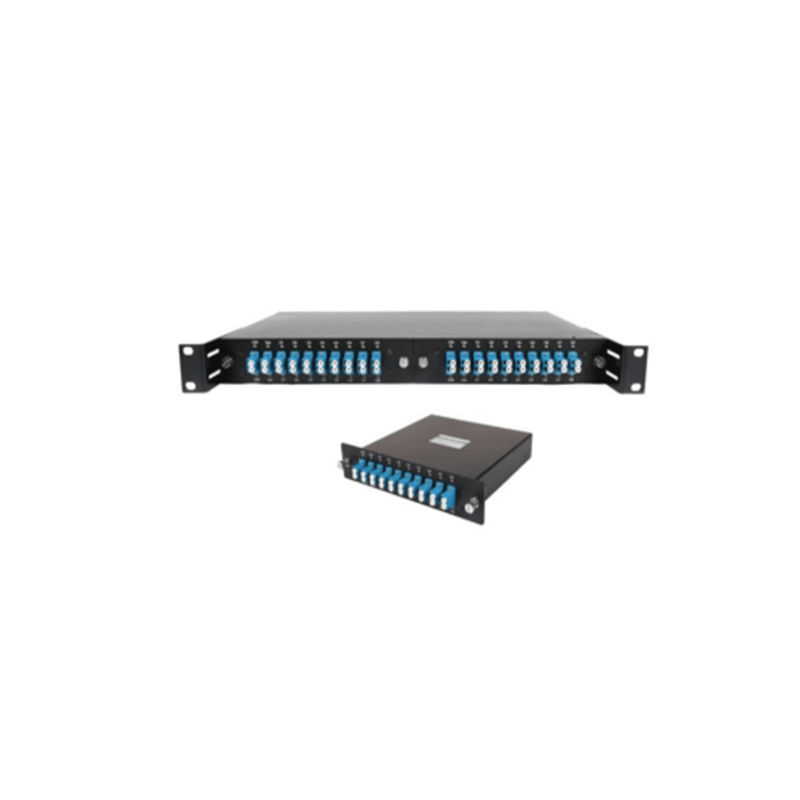

100G DWDM Module
Ordering information
| 100G DWDM Module | ||||||||||
| Springtek | - | DWDM | Channel No | ITU | MUX/DEMUX Type | Initial CW | Package Type | - |
COM Connector |
PortConnector |
| x | - | X | XX | X | X | XX | XXX | - | X | X |
| S | - | D | 04=04CH | X=100G | M=Mux | C24= 24CH | LGX=155x129 x29 | 0=No | 0=No | |
| 06=06CH | Y=200G | D= Demux | C28= 28CH | 2H1=215x190x42 | 1=FC/UPC | 1=FC/UPC | ||||
| 191=484x250x44 | 2=FC/APC | 2=FC/APC | ||||||||
| XXX= Customized | 3=SC/UPC | 3=SC/UPC | ||||||||
| LGX=155x129 x29 | 4=SC/APC | 4=SC/APC | ||||||||
| 5=LC/UPC | 5=LC/UPC | |||||||||
| 6=LC/APC | 6=LC/APC | |||||||||
Features
Applications
Standards
Specifications
| Parameters | Unit | Value | ||
| Operating Wavelength (nm) | nm | 1525~1565 | ||
| Channel spacing | nm | 0.8 | ||
| Channel Port | / | 8CH | 24CH | |
| Center Wavelength | / | C20~C27 | C20~C43 | |
| Pass band | nm | ±0.125 | ||
| Center Wavelength Accuracy | nm | ±0.05 | ||
| Port Insertion Loss | dB | ≤2.5 | ≤3.3 | |
| Port Link Loss(Remote+ HQ) | dB | ≤3.3 | ≤4.0 | |
| Isolation | Adjacent | dB | ≥30 | |
| Non-adjacent | dB | ≥40 | ||
| Ripple | dB | ≤0.5 | ||
| PDL | dB | ≤0.2 | ||
| RL | dB | ≥40 | ||
| Directivity | dB | ≥50 | ||
| Power | mW | ≤300 | ||
| Fiber Type | / | G657A1 | ||
| Fiber Length | cm | 50±5 | ||
| Connector | / | LC/UPC | ||
| Operating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
| Housing | mm | 484x250x44 | ||
