Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-DMD64-1U01-75GHZ-M-A

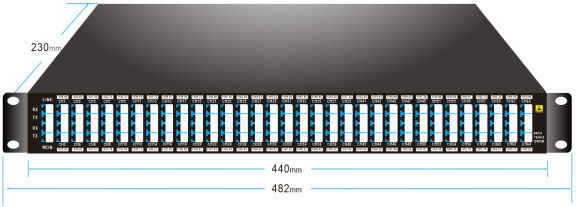

75GHz 64CH 1528.68nm-1566.42nm DWDM MUX DEMUX with Monitor Port,LC/UPC 1U Rack
Ordering information
| Product No. | Product description | |
| S-DMD64-1U01-75GHZ-M-A | DWDM MUX DEMUX 75GHz 64CH 1528.68nm-1566.42nm with Monitor Port,LC/UPC 1U Rack | |
| Note: We Support Customized Design, please contact us by email. | ||
Description
The Springtek 75GHz 64ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1528.68nm-1566.42nm, in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The Springtek 75GHz 64ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜5.5dB), Support 400G x 64ch business in DWDM transfer system.
Specifications
| Wavelength | 1528.68nm-1566.42nm | Channel Spacing | 75GHz |
| Channel Passband | ±0.05nm | Technology | AAWG (Flat top) |
| Insertion Loss | ≤ 5.5dB | Link Loss | ≤ 11dB |
|
1310nm Port Pass Band Width |
1260nm~1360nm | Center Wavelength Accuracy | ±0.05nm |
| Insertion Loss @ 1% Mon | ≤ 26dB | Total Crosstalk | ≥5dB |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
|
Polarization Mode Dispersion |
≤ 1.0ps | Polarization Dependent Loss | ≤ 0.7dB |
| Channel Isolation | Adjacent ≥ 18dB Non-adjacent ≥ 25dB |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
| Net Weight | 3.5KG | Dimensions (HxWxD) | 44*440*230mm |
| Note: Specified with connectors. | |||
