Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-DW-D40CH-R31

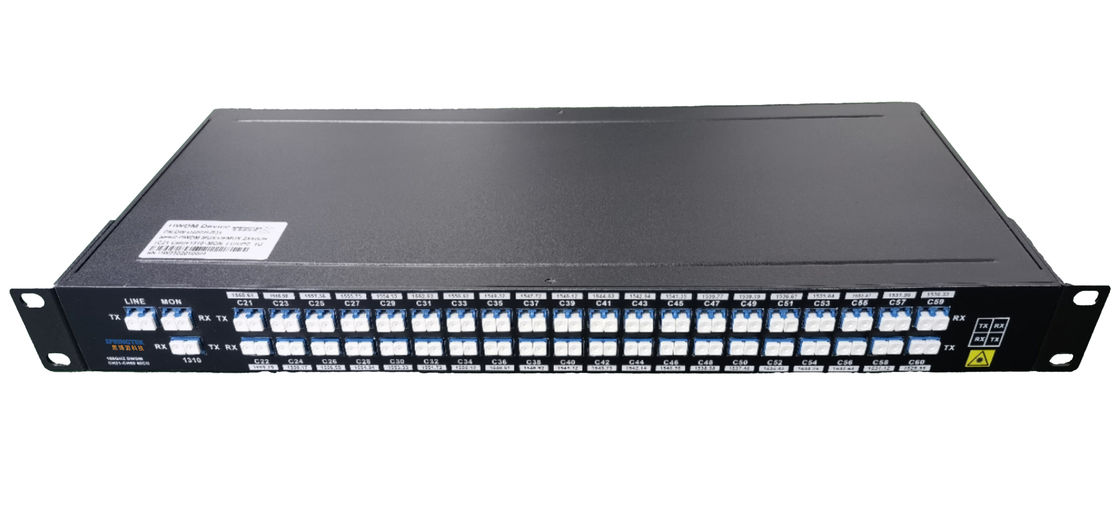

DWDM 1U Rack 100Ghz 40CH( C21~C60) 1310nm With Monitor Port
Order Information
| Product No. | Product description |
| S-DW-D40CH-R31 | DWDM 1U Rack 100Ghz 40ch (c21-c60) 1310nm with monitor port |
| Note: We Support Customized Design, please contact us by email. | |
Description
Springtek 100Ghz 40ch DWDM MUX DEMUX wavelength from C21 toC60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
Springtek 100Ghz 40ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB; 1310nm port＜0.8dB). And it conjunct with The DWDM amplifiers and DCM device,40ch DWDM transfer system can support a long distance transmission.
Product Panel
Line Link
40 Channels DWDM MUX DEMUX and with 1310nm Port, supports 40 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries
Product Specification
| Channel Spacing | 100GHz (0.8nm) | Wavelength | 40channels C21-C60 | Technology | AAWG (Gaussian) |
| Channel Passband | ±0.11nm | Insertion Loss | ≤ 3.5dB | Link Loss | ≤ 7dB |
|
1310nm Port Pass Band Width |
1260nm~1360nm |
Center Wavelength Accuracy |
±0.05nm | Insertion Loss @1310 port | ≤ 0.8dB |
| Insertion Loss @ 1%Mon | ≤ 26dB | Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
| Polarization Mode Dispersion | ≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB | Channel Isolation |
Adjacent≥ 25dB Non-adjacent ≥ 29dB |
| Temperature |
Operating:-5 to 65°C Storage:-40 to 85°C |
Net Weight | 1.5KG | Dimensions (HxWxD) | 44*440*230mm |
| Note: Specified with connectors. | |||||
