Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-QP1AC31M2K-CD

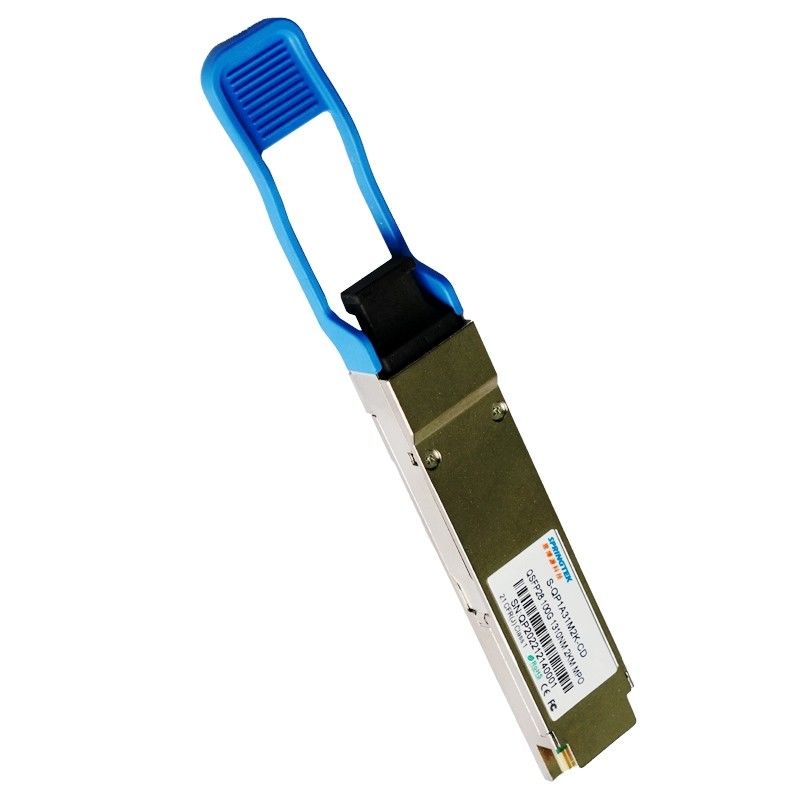

QSFP28 100G PSM4 1310nm 2km MTP/MPO Cisco Compatible Optical Transceiver Module
Ordering information
| Part Number | Product Description |
|
S-QP1AC31M2K-CD |
QSFP28, 100Gbps, PSM4,1310nm,SM,MPO,2km, 0ºC~+70ºC, With DDM, |
Description
Springtek 100G PSM4 QSFP28 single mode optical transceiver designed for optical communication applications. This product provides increased port density, offering four independent transmit and receive channels,Each channel operates at 25Gbps, resulting in an aggregate data rate of 100Gbps on 2km of single mode fiber,An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module receptacle,The guide pins inside the receptacle ensure proper alignment.
according to the QSFP28 Multi-Source Agreement (MSA),The module can be managed through the I2C two-wire serial interface. The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels,All input data signals are differential and internally terminated. The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals. The receiver module outputs electrical signals are also voltage compatible with Common Mode Logic (CML) levels. All data signals are differential and support a data rates up to 25Gb/s per channel.
Features
Applications
Standards
Absolute Maximum Ratings
| Parameter | Symbol | Min | Typ | Max | Unit |
| Power Supply Voltage | Vcc | -0.5 | 4 | V | |
| Storage Temperature Range | Ts | -40 | 85 | °C | |
| Relative Humidity - Storage | RHS | 0 | 95 | % | |
| Relative Humidity - Operating | RHO | 0 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
| Case Operating Temperature Range | Tc | 0 | - | 70 | °C |
| Power Supply Voltage | Vcc | 3.14 | 3.3 | 3.47 | V |
| Total Power Consumption | P | - | - | 3.5 | W |
| Data Rate | BR | - | 25.78125 | - | Gbps |
Electrical Characteristics
| Transmitter Electrical Characteristics | |||||
| Parameter | Symbol | Min | Typ | Max | Unit |
| Differential Input Voltage Swing | VIN | 180 | - | 900 | mV |
| Tx Differential Input Impendence | ZIN | - | 100 | - | Ω |
| Differential termination mismatch | - | - | 10 | % | |
| Differential input return loss | Per 100G CLR4 MSA | dB | |||
| Common mode input return loss | Per 100G CLR4 MSA | dB | |||
| Receiver Electrical Characteristics | |||||
| Parameter | Symbol | Min | Typ | Max | Unit |
| Differential output Voltage Swing | VOUT | 300 | - | 1200 | mV |
| Rx Differential Output Impendence | ZOUT | - | 100 | - | Ω |
| Differential termination mismatch | - | - | 10 | % | |
| Differential output return loss | Per 100G CLR4 MSA | dB | |||
| Common mode output return loss | Per 100G CLR4 MSA | dB | |||
ptical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Notes | |
| Transmitter Characteristics | |||||||
| Signaling rate per lane | 25.78125 | GBd | 1 | ||||
| Lane center wavelengths(range) | λ | 1260 | 1310 | 1355 | nm | ||
| Total Average Launch Power | Pout | 9.5 | dBm | ||||
| Average Launch Power per Lane | TXPx | -6.5 | 2.5 | dBm | |||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Sidemode Suppression ratio | SMSR | 30 | dB | ||||
| Average launch Power off per lane | Poff | -30 | dB |
|
|||
|
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} |
{0.31, 0.4, 0.45, 0.34, 0.38, 0.4} | ||||||
| Receiver Characteristics | |||||||
| Signaling rate per lane | 25.78125 | GBd | |||||
| Lane center wavelengths(range) | λ | 1260 | 1355 | nm | |||
| Average receiver power,each lane | Rmax | 3.5 | dBm | ||||
|
Unstressed Receiver Sensitivity (OMA) per Lane |
Rxsens | -10.2 | dBm | 1 | |||
| Input Saturation Power (Overload) | Psat | 4.5 | dBm | ||||
| Receiver Reflectance | Rr | -26 | dB | ||||
| LOS | Optical De-assert | Pd | -12 | dBm | |||
| Optical Assert | Pa | -18 | |||||
| Notes | |||||||
|
|||||||
