Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-QP1AL4L40-CD-Lite

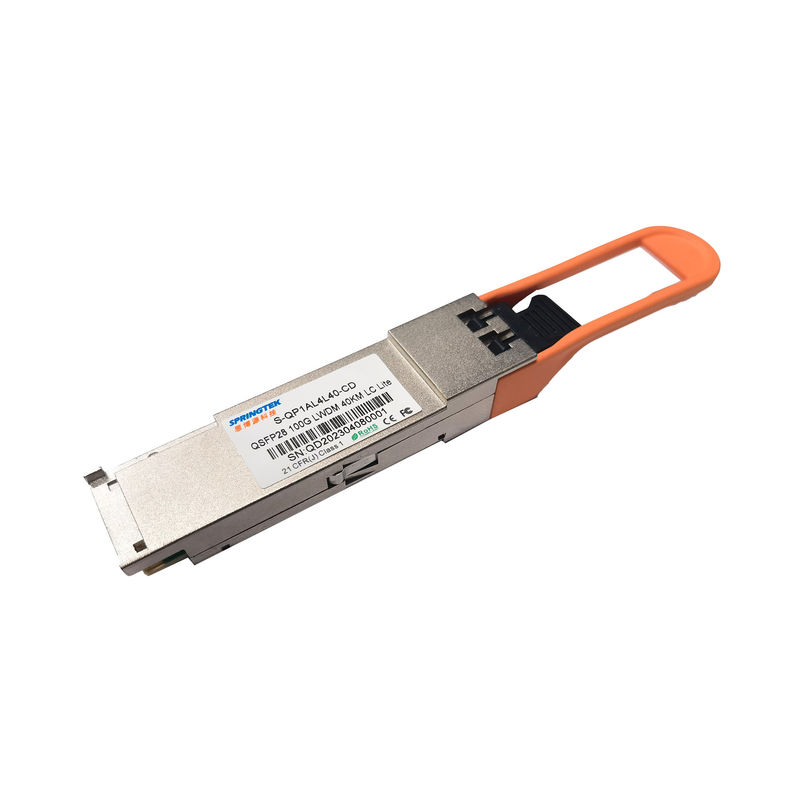

Compatible Cisco QSFP28 ER4 Lite 100Gbps 1294 -1310nm 40Km Optical Transceiver Module
Ordering information
| Part Number | Product Description |
|
S-QP1AL4L40-CD-Lite |
QSFP28, 100Gbps,ER4 Lite,1294-1310nm, SM, LC 40km, 0ºC~+70ºC, With DDM |
Description
Springtek 100G QSFP28 ER4 Lite optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- EML with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface.
Springtek product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.
Features
Applications
Standards
Absolute Maximum Ratings
| Parameter | Symbol | Min | Typ | Max | Unit |
| Power Supply Voltage | Vcc | -0.3 | 3.6 | V | |
| Storage Temperature Range | Ts | -40 | 85 | °C | |
| Relative Humidity - Storage | RHS | 0 | 95 | % | |
| Relative Humidity - Operating | RHO | 0 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
| Case Operating Temperature Range | Tc | 0 | - | 70 | °C |
| Power Supply Voltage | Vcc | 3.14 | 3.3 | 3.47 | V |
| Total Power Consumption | P | - | - | 3.5 | W |
| Data Rate | BR | - | 25.78125 | - | Gbps |
Electrical Characteristics
| Transmitter Electrical Characteristics | |||||
| Parameter | Symbol | Min | Typ | Max | Unit |
| Differential Input Voltage Swing | VIN | 180 | - | 1000 | mV |
| Tx Differential Input Impendence | ZIN | - | 100 | - | Ω |
| Differential input return loss | Per 100Gbase-ER4 | dB | |||
| Common mode input return loss | Per 100Gbase-ER4 | dB | |||
| Receiver Electrical Characteristics | |||||
| Parameter | Symbol | Min | Typ | Max | Unit |
| Differential output Voltage Swing | VOUT | 300 | - | 1200 | mV |
| Rx Differential Output Impendence | ZOUT | - | 100 | - | Ω |
| Differential output return loss | Per 100Gbase-ER4 | dB | |||
| Common mode output return loss | Per 100Gbase-ER4 | dB | |||
ptical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
| Transmitter Characteristics | ||||||
| Signaling rate per lane | 25.78125 | GBd | 1 | |||
| Lane center wavelengths(range) | λ | 1294.53 | 1295.56 | 1296.59 | nm | |
| 1299.02 | 1300.05 | 1301.09 | ||||
| 1303.54 | 1304.58 | 1305.63 | ||||
| 1308.09 | 1309.14 | 1310.19 | ||||
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Total Average launch Power | PTOTAL | - | - | 10.5 | dBm | |
| Average Launch Power, each lane | POUT | -2.9 | - | 4.5 | dBm | |
| Spectral Width (-20dB) | σ | - | 1 | nm | ||
| Average Launch Power of OFF transmitter, each lane | POFF | - | - | -30 | dBm | |
| Extinction Ratio | ER | 4 | - | - | dB | |
| Transmit Reflectance | RFL | - | - | -12 | dB | |
|
Output Eye Mask definition {X1,X2,X3,Y1,Y2,Y3} |
{0.25,0.4,0.45,0.25,0.28,0.4} | |||||
| Receiver Characteristics | ||||||
| Signaling rate per lane | 25.78125 | GBd | ||||
| Lane center wavelengths(range) | λ | 1294.53 | 1295.56 | 1296.59 | nm | |
| 1299.02 | 1300.05 | 1301.09 | ||||
| 1303.54 | 1304.58 | 1305.63 | ||||
| 1308.09 | 1309.14 | 1310.19 | ||||
| Damage Threshold | THd | -3 | dBm | 1 | ||
| Total Average Receive Power | 2.0 | dBm | ||||
| Receiver Sensitivity (OMA), each lane | SenOMA1 | - | -16.5 | - | dBm | 1 |
| Receiver Sensitivity (OMA), each lane | SenOMA2 | - | -20.5 | -19 | dBm | 2 |
| LOS Assert | LOSA | - | -26 | - | dBm | |
| LOS De-Assert | LOSD | - | -24 | - | dBm | |
| LOS hysteresis | LOSH | 0.5 | - | - | dB | |
| Notes | ||||||
|
1. The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power. 2. 25.78125Gb/s,NRZ,PRBS 231-1,BER=1x10-12. 3. 27.95249Gb/s,NRZ,PRBS 231-1,BER=5x10-5. |
||||||
