Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-Q440A005-C
Ordering information
| Part Number | Product Description | Fiber Spec. |

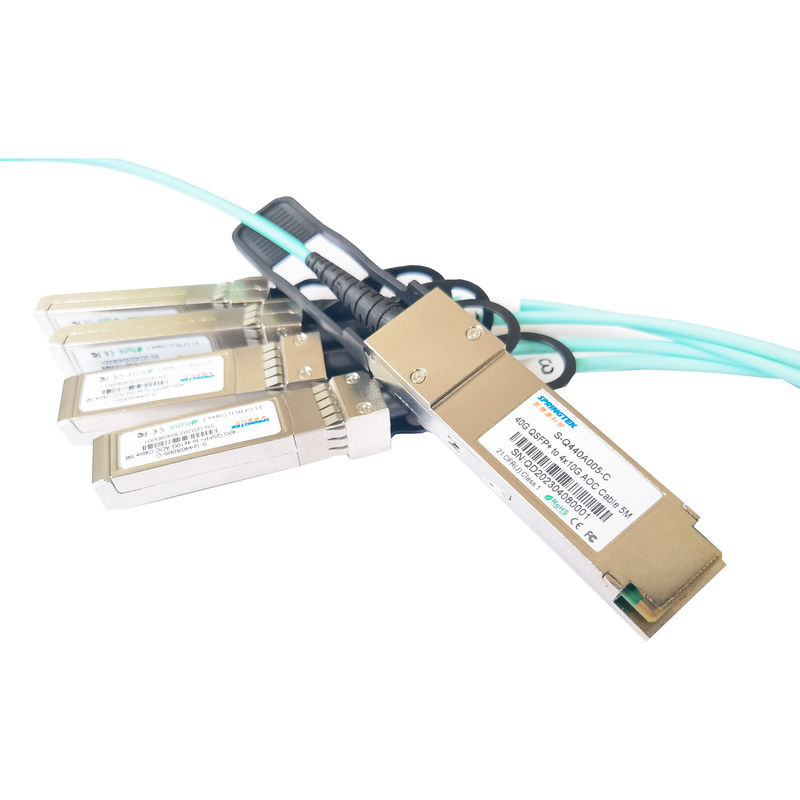

| S-Q440A005-C | 40G QSFP+ to 4x10G AOC Cable 5M | 0~70℃ |
Description
Springtek 40G QSFP+ AOC product is a high data rate parallel active optical cable, to overcome the bandwidth limitation of traditional copper cable. The Springtek 40G QSFP+ AOC offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each capable of 10 Gb/s operation.Consequently, an aggregate data rate of 40Gb/s over 100 meters transmission can be achieved by this product, to support the ultra-fast computing data exchange.
Springtek product is designed with form factor, optical/electrical connection according to the QSFP+ Multi-Source Agreement (MSA).It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Features
Applications
Standardl
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | TSTG | -40 | 85 | ℃ |
| Operating Humidity | HO | 5 | 90 | % |
| Power Supply Voltage | Vcc | -0.3 | +3.6 | V |
| Input Voltage | VIN | -0.3 | VCC+0.3 | V |
| Damaged Threshold,per Lane | DT | 3.4 | dBm |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Control Input Voltage High | 2 | VCC | V | ||
| Control Input Voltage Low | 0 | 0.8 | V | ||
| Data Rate, each Lane | 10.3125 | 11.2 | Gbps |
Transmitter
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|
Single Ended Input Voltage Tolerance |
-0.3 | 4 | V | |||
|
AC Common Mode Input Voltage Tolerance |
15 | mV | RMS | |||
|
Differential Input Voltage Swing Threshold |
50 | mVpp |
LOSA Threshold |
|||
| Differential Input Voltage Swing | Vin, pp | 180 | 1200 | mVpp | ||
| Differential Input Impedance | Zin | 90 | 100 | 110 | Ohm | |
|
Single Ended Input Voltage Tolerance |
-0.3 | 4 | V | |||
| Differential Input S-parameter | SDD11 | < -12 + 2 × SQRT(f), with f in GHz. | dB | 0.01-4.1GHz | ||
| < -6.3 + 13 × log10(f/5.5), with f in GHz | dB | 4.1-11.1GHz | ||||
|
Reflected Differential to Common Mode Conversion |
SCD11 | -10 | dB | 0.01-11.1GHz | ||
Receiver
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Single Ended Output Voltage | -0.3 | 4 | V | |||
|
AC Common Mode Output Voltage |
7.5 | mV | RMS | |||
|
Differential Output Voltage Swing |
Vout, pp | 400 | 800 | mVpp | ||
| Differential Output Impedance | Zout | 90 | 100 | 110 | Ohm | |
|
Differential Output S-parameter |
SDD22 | < -12 + 2 × SQRT(f ), with f in GHz | dB | 0.01-4.1GHz | ||
| < -6.3 + 13 × log10(f/5.5), with f in GHz | dB | 4.1-11.1GHz | ||||
|
Common Mode Output Reflection Coefficient |
SCC22 | < -7 + 1.6×f, with f in GHz | dB | 0.01-2.5GHz | ||
| -3 | dB | 2.5-11.1GHz | ||||
| Total Jitter | 0.38 | UI | ||||
| Deterministic Jitter | 0.64 | UI | ||||
