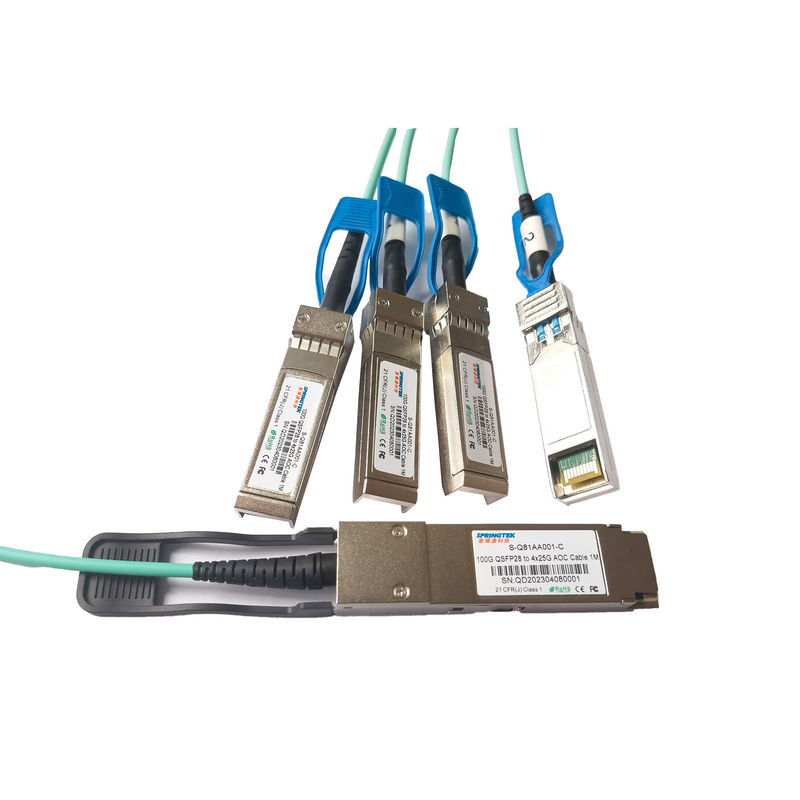

1m (3ft) S-Q81AA001-C 1M Compatible 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable
Ordering information
| Part Number | Product Description | Fiber Spec. |
| S-Q81AA001-C | 100G QSFP28 to 4x25G AOC Cable 1M | 0~70℃ |
Description
Springtek 100G QSFP28 to 4xSFP28 AOC (Active Optical Cable) assemblies are designed to support 100G/4x25G Ethernet, InfiniBand 4x EDR and CPRI/eCPRI, suitable for data center, HPC (High-Performance Computing) and SAN (Storage Area Network) links up to 100m or 300m over OM4 MMF.
Features
Applications
Standardl
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | TSTG | -40 | 85 | ℃ |
| Operating Humidity | HO | 5 | 90 | % |
| Power Supply Voltage | Vcc | -0.3 | +3.6 | V |
| Input Voltage | VIN | -0.3 | VCC+0.3 | V |
| Damaged Threshold,per Lane | DT | 3.4 | dBm |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | ℃ |
| Operating Humidity | RH | 5 | 85 | % | |
| Data Rate,per Lane | PW | 2.5 | W | ||
| Data Rate, each Lane | DR | 25.78125 | Gbps |
Transmitter
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Differential Input Voltage Swing | Vin, pp | 180 | 1100 | mW | ||
| Differential Input Impedance | Rin | - | 100 | - | Ohm | |
|
Single Ended Input Voltage Tolerance |
VinT | -0.3 | 4 | V |
Receiver
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Single Ended Output Voltage | -0.3 | 4 | V | |||
|
Differential Output Voltage Swing |
Vout, pp | 300 | 850 | mVpp |
Digital Diagnostic Monitoring Information
| Parameter | Accuracy | Calibration | Note |
| Temperature | ±3°C | Internal | 0~70℃ |
| Voltage | ±3% | Internal | 3.1~3.5V |
| Bias Current | ±10% | Internal | Specified by normal value |
| TX Power | ±3dB | Internal | -8.4~2.4dBm |
| RX Power | ±3dB | Internal | -10.3~2.4dBm |
