Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-FP10A010-C

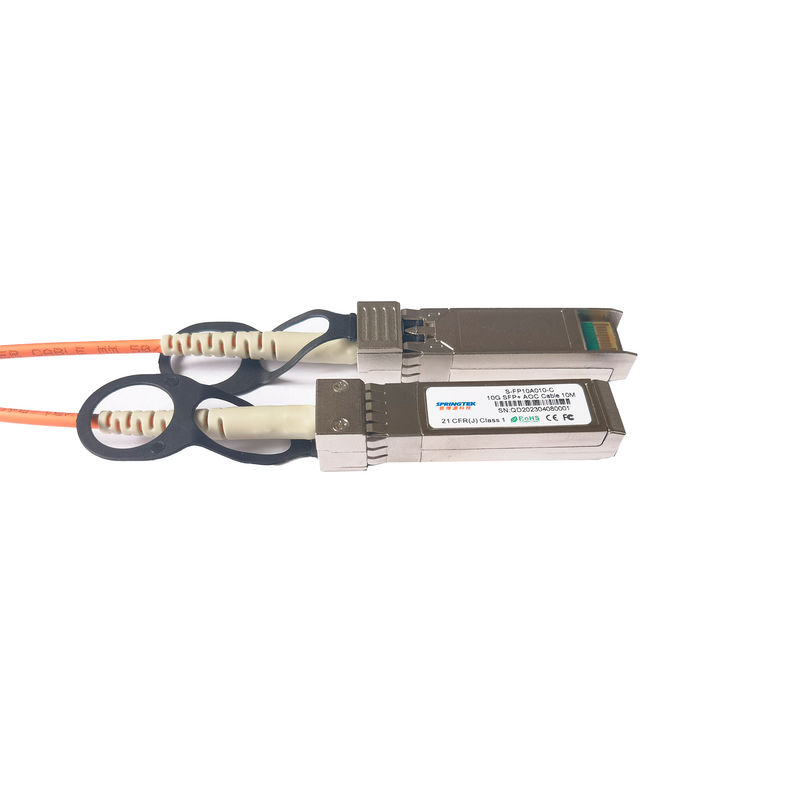

10G SFP+ 850nm AOC Cable 10M
Ordering information
| Part Number | Product Description | Fiber Spec. |
| S-FP10A010-C | 10G SFP+ AOC Cable 10M | 0~70℃ |
Description
Springtek SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. The Cables’s length is up to 300 meters on OM3 MMF.
Features
Applications
Standardl
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Case Temperature | Tc | 0 | +70 | °C |
| Supply Voltage | Vcc | 0 | 3.6 | V |
| Operating Humidity | RH | 0 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | 25 | +70 | °C |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V |
| Supply Current | Icc | 250 | mA | ||
| Bit Rate | BR | 10.3125 | Gb/s |
Transmitter
| Parameter | Symbol | Min | Typical | Max | Unit |
| Input differential impedance | Rin | 100 | Ω | ||
| Differential data input swing | Vin,pp | 180 | 700 | mV | |
| Transmit Disable Voltage | VD | 2 | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | V |
Receiver
| Parameter | Symbol | Min | Typical | Max | Unit |
| Differential data output swing | Vout,pp | 300 | 850 | mV | |
| Data output rise time, fall time | tr | 28 | ps | ||
| LOS Fault | VLOSfault | 2 | VccHOST | ||
| LOS Normal | VLOS norm | Vee | Vee+0.8 |
