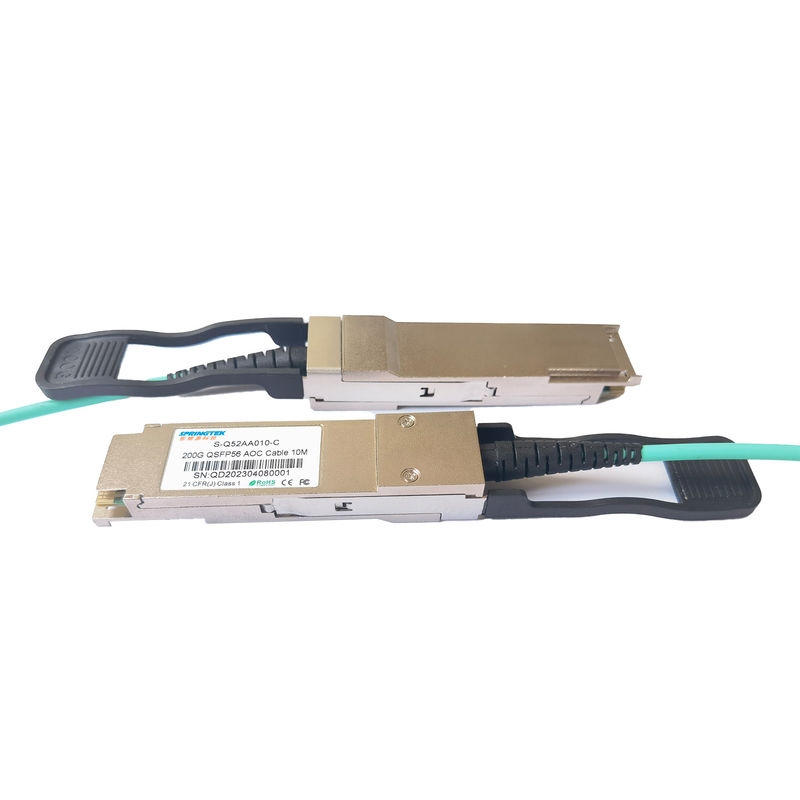

200G QSFP56 to QSFP56 AOC Cable 10M
Ordering information
| Part Number | Product Description | Fiber Spec. |
| S-Q52AA010-C |
200G QSFP56 AOC Cable 10M |
0~70℃ |
Description
Springtek 200G QSFP56 Optical Transceiver modules are designedfor usein200Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber. They are compliant with the QSFP MSAandwith IEEE 802.3cd 200GBASE-SR4 specification. Digital diagnostics functions are availableviatheI2Cinterface as specified by CMIS V4.0.
Springtek 200G QSFP56 Optical transceiver is RoHS 2.0 compliant and lead-free per Directive2011/65/EU.
Features
Applications
Absolute Maximum Ratings
It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Typical | Max | Unit |
| Storage Temperature | TS | -20 | - | 85 | ℃ |
| Relative Humidity | RH | 0 | - | 85 | % |
| Case Operating Temperature | TCase | 0 | - | 70 | ℃ |
| Supply Voltage | VCC | -0.5 | - | 3.6 | V |
Recommended Operating Conditions
Recommended Operating Environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | VCC | 3.135 | 3.300 | 3.465 | V |
| Operating Case Temperature | TC | 0 | 25 | 70 | °C |
Transmitter
| Parameter | Symbol | Min | Typical | Max | Unit |
| Signaling Speed per Lane | PRBS31Q@26.5625Gbd PAM4 | Gb/s | |||
| Center Wavelength | C | 840 | 850 | 860 | nm |
| Differential Input Impedance | Zin | 90 | 100 | 110 | Ohm |
| Differential Input Voltage | Vin | -- | 900 | - | mVp-p |
| Differential termination mismatch | - | - | - | 10 | % |
| DC common mode voltage | - | -350 | - | 2850 | mV |
Receiver
| Parameter | Symbol | Min | Typical | Max | Unit |
| Signaling Speed per Lane | PRBS31Q@26.5625Gbd PAM4 | Gb/s | |||
| Center Wavelength | lC | 840 | 850 | 860 | nm |
| Differential termination mismatch | - | - | - | 10 | % |
| Differential Output Impedance | Zout | 90 | 100 | 110 | Ohm |
| Differential Output Voltage | Vout | - | - | 900 | mVp-p |
| DC common mode voltage | - | -350 | 2850 | mV | |
| Error Bit Rate | BER | - | - | 2.4E-4 | PRBS31Q@26.5625Gbd PAM4 |
