Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-FP1055LA0-CD

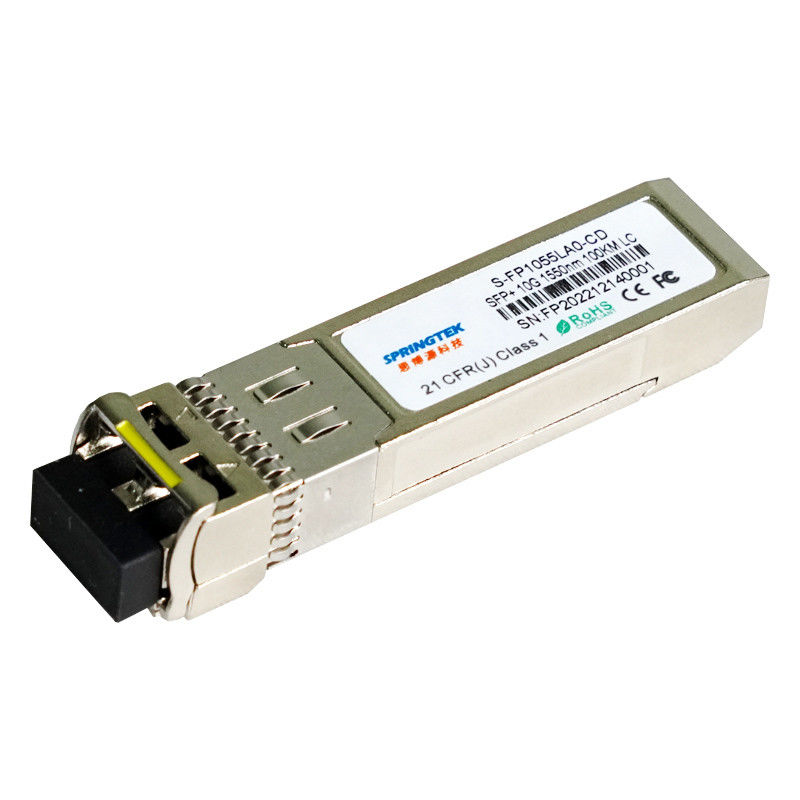

10Gbps CWDM 100km SFP+ ZR+ Optical Transceiver Module
Ordering information
| Part Number | Product Description |
| S-FP1055LA0-CD | SFP+, 10.3125Gbps, 1550nm, SM, 100km, 0ºC~+70ºC, With DDM |
Description
Springtek 10G CWDM SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Features
Applications
Absolute Maximum Ratings
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply Voltage | Vcc | -0.5 | - | 4.5 | V |
| Storage Temperature | Ts | -40 | - | +85 | °C |
| Operating Humidity | - | 5 | - | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
| Case Operating Temperature Range | Tc | 0 | +70 | °C | |
| Power Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V |
| Power Supply Current | Icc | 600 | mA | ||
| Data Rate | 1.0 | 10.3 | 10.7 | Gbps |
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Transmitter | |||||||
| Centre Wavelength | λc | λc-6.5 | λc | λc+6.5 | nm | ||
| Spectral Width(-20dB) | Δλ | 1 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | 30 | - | dB | |||
| Average Output Power | Pout | 2 | 6 | dBm | 1 | ||
| Extinction Ratio | ER | 8.2 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 850 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
| TX Disable | Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
| TX Fault | Fault | 2.0 | Vcc | V | |||
| Normal | 0 | 0.8 | V | ||||
| Receiver Characteristics | |||||||
| Centre Wavelength | λc | 1450 | 1620 | nm | |||
| Receiver Sensitivity | -23 | dBm | 3 | ||||
| Receiver Overload | -7 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -24 | dBm | ||||
| LOS Assert | LOSA | -35 | dBm | ||||
| LOS Hysteresis | 0.5 | dB | |||||
| Data Output Swing Differential | Vout | 300 | 900 | mV | 4 | ||
| LOS | High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
| Notes: | |||||||
|
1. The optical power is launched into SMF. 2. PECL input, internally AC-coupled and terminated. 3. Measured with a PRBS 231-1 test pattern @10312Mbps, BER ≤1×10-12. 4. Internally AC-coupled. |
|||||||
Timing and Electrical
| Parameter | Symbol | Min | Typical | Max | Unit |
| Tx Disable Negate Time | t_on | 1 | ms | ||
| Tx Disable Assert Time | t_off | 10 | µs | ||
| Time To Initialize, including Reset of Tx Fault | t_init | 300 | ms | ||
| Tx Fault Assert Time | t_fault | 100 | µs | ||
| Tx Disable To Reset | t_reset | 10 | µs | ||
| LOS Assert Time | t_loss_on | 100 | µs | ||
| LOS De-assert Time | t_loss_off | 100 | µs | ||
| Serial ID Clock Rate | f_serial_clock | 100 | 400 | KHz | |
| MOD_DEF (0:2)-High | VH | 2 | Vcc | V | |
| MOD_DEF (0:2)-Low | VL | 0.8 | V |
Diagnostics
| Parameter | Range | Unit | Accuracy | Calibration |
| Temperature | 0 to +70 | °C | ±3°C | Internal |
| Voltage | 3.0 to 3.6 | V | ±3% | Internal |
| Bias Current | 0 to 100 | mA | ±10% | Internal |
| TX Power | -5 to +2 | dBm | ±3dB | Internal |
| RX Power | -16 to -1 | dBm | ±3dB | Internal |
