Place of Origin:
Wuhan China
Brand Name:
Springtek
Certification:
ISO9001 RoHS FCC CE
Model Number:
S-Q440P003-C

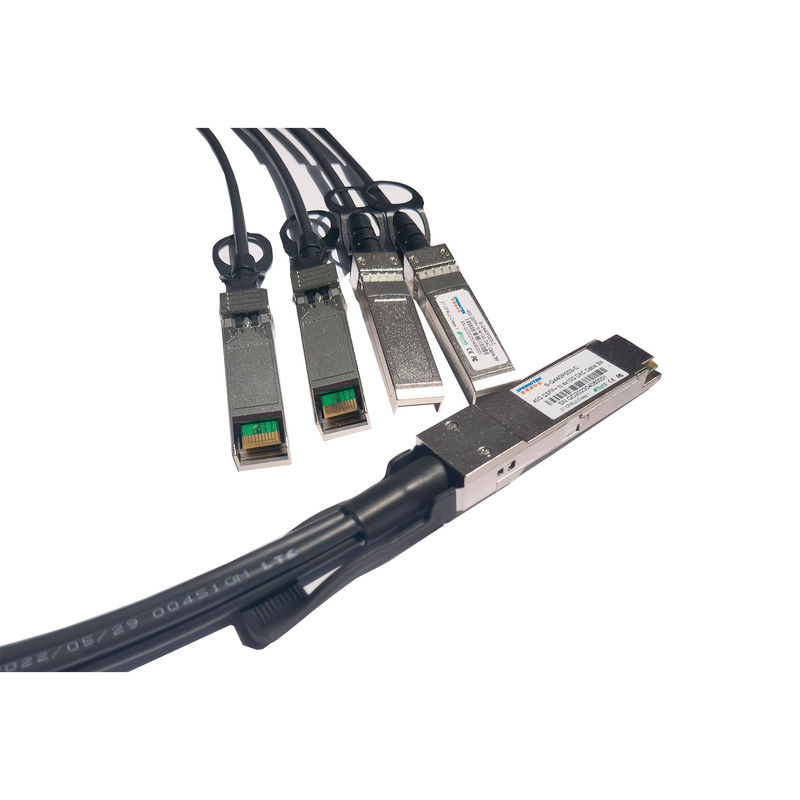

40G QSFP+ to 4xSFP+ DAC Cable 3M
Ordering information
| Part Number | Product Description | Fiber Spec. |
| S-Q440P003-C | 40G QSFP+ to 4x10G DAC Cable 3M | 0~70℃ |
Description
Springtek 40G QSFP+ to 4x 10G SFP+ direct attach passive copper cable are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ and SFP+ equipment connections. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.
Features
Applications
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit | Note |
| Storage Temperature | Tst | -40 | 125 | degC | |
| Relative Humidity (non-condensation) | RS | - | 85 | % | |
| Operating Case Temperature | Topc | -5 | 75 | degC | 1 |
| Supply Voltage | VCC3 | -0.3 | 3.6 | V | |
| Voltage on LVTTL Input | Vilvttl | -0.3 | VCC3 +0.2 | V |
Recommended Operating Conditions
| Parameter | Symbol | Min | Max | Unit |
| Operating Case Temperature | Topc | -5 | 75 | degC |
| Relative Humidity (non-condensation) | RS | - | 85 | % |
| Supply Voltage | VCC3 | 3.135 | 3.465 | V |
| Power Supply Currenct | ICC3 | 750 | - | mA |
| Total Power Consumption | Pd | - | 2.0 | W |
