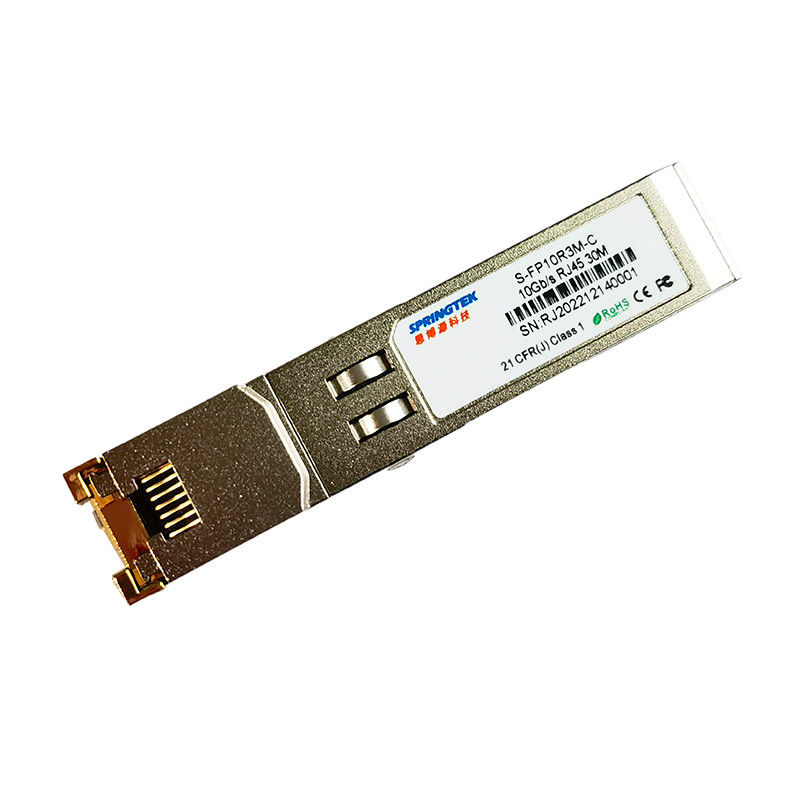

Juniper 10GBASE-T Copper 30m SFP Optical Transceiver Module
Ordering information
| Part Number | Product Description |
| S-FP10R3M-C | SFP, 10Gb/s,Copper, RJ45 ,30M,0ºC~+70ºC |
Description
Springtek SFP-10G-T Copper Small Form Pluggable Plus(SFP+) transceivers is high performance,high reliability,cost effective module compliant with the 10 Gigabit Ethernet and 10G BASE-T standards as specified in IEEE 802. 3-2015 and IEEE 802.3an,which supporting 10Gbps data-rate up to 30 meters reach over shielded twisted-pair category 6A cable.The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals.The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.
Features
SFF-8431 and SFF-8432 MSA Complant
IEEE 802.3az and 802.3an Compliant
IEEE 802.3bz for 5G&2.5G BASE-T
Hot-pluggable SFP footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+3.3V single power supply
Low Power Consumption (2.5W MAX @ 30m)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
RoHS compliant (lead free)
Applications
1.25Gigabit Ethernet over Cat 5e cable
Environmental specification
| Parameter | Symbol | Min | Typ | Max | Units |
| Operating Temperature | Tc | 0 | +70 | ℃ | |
| Storage Temperature | -40 | +85 | ℃ |
Electrical Power Interface
| Parameter | symblo | Min | Typ | Max | Units |
Notes/Conditions |
| Supply Current | Is | 500 | 757 | mA | 2.5W max power over full range of vlitage and temperature.see caution note blew | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Maximum Voltage | Vmax | 3.6 | V |
Low-speedsignals,electroniccharacteristics
| Parameter | Symbol | Min | Max | Units | Notes/Conditions |
| SFP Output LOW | VOL | 0 | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
| SFP Output HIGH | VOH | host_Vcc-0.5 | host_Vcc+0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
| SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
| SFP Input HIGH | VIH | 2 |
Vcc+ 0.3 |
V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
High-speed electrical interface, transmission line-SFP
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
| Line Frequency | FL | 800 | MHz | 5-level encoding, per IEEE 802.3 | ||
| Tx Output Impedance | Zout,Tx | 100 | Ohm | Differential, for all Frequencies between 1MHz and 125MHz | ||
| Rx Inout Impedance | Zin,Rx | 100 | Ohm | Differential, for all Frequencies between 1MHz and 125MHz |
High-speed electrical interface, host-SFP
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
| Single ended data input swing | Vinsing | 500 | 800 | 1100 | mV | Differential |
| Single ended data output swing | Voutsing | 500 | 800 | 1100 | mV | Differential |
| Rise/Fall Time | Tr,Tf | 20 | 47 | psec | 20%～80% | |
| Tx Input Impedance | Zin | 100 | ohm | Differential | ||
| Tx Input Impedance | Zout | 100 | ohm | Differential |
General specifications
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
| Date Rate | BR | 1 | 10 | Gb/s | See Notes 2 through 4 below IEEE 802.3 compatible. | |
| Cable Length | L | 30 | m | |||
| Notes | ||||||
| Clock tolerance is +/- 50 ppm. | ||||||
